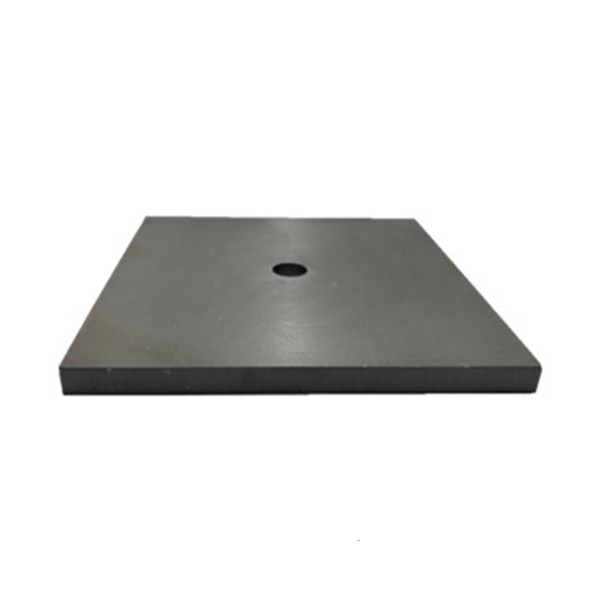

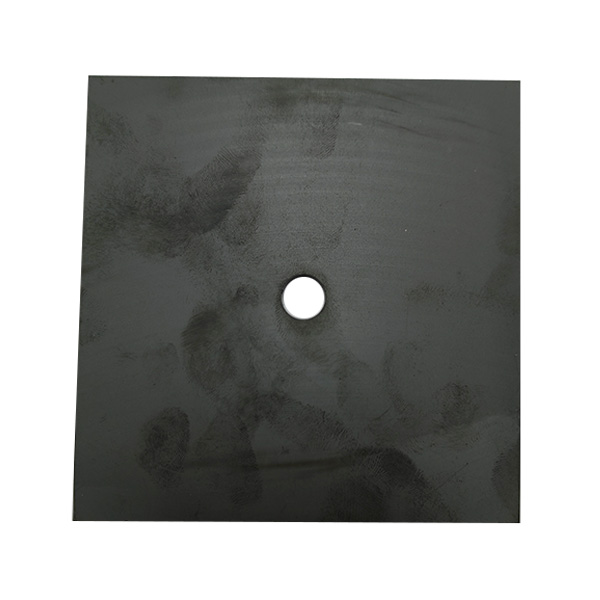

Ferrite Tiles for EMC Chamber
1. Excellent electromagnetic wave absorption
2. Raw material is oxide and not easy to corrode
3. The quality value Q is high
4. High strength
5. Great temperature stability at -40°C and +350°C
Parameter Specification
Ferrite is a flat, square shape and ferromagnetic metal oxide. The resistivity of ferrite is much larger than that of metal and alloy magnetic materials, and it also has higher dielectric properties. The magnetic properties of ferrite are also shown to have high permeability at high frequencies. Therefore, ferrite has become a widely used non-metallic magnetic material in the field of high frequency weak current.
| Overall dimension | 100m100×52mm(LmWD) |
| Standard quality | 260-270g |
| Flexural strength (Pa) | 1.4×108 |
| Tensile strength (Pa) | 3.1×109 |
| Compressive strength (Pa) | 7.8×109 |
| Thermal expansion coefficient (K-1) | 1.1×10-5 |
| Thermal conductivity W(m.K | 4 |
| Specific heat J/(KgK) | 640 |
