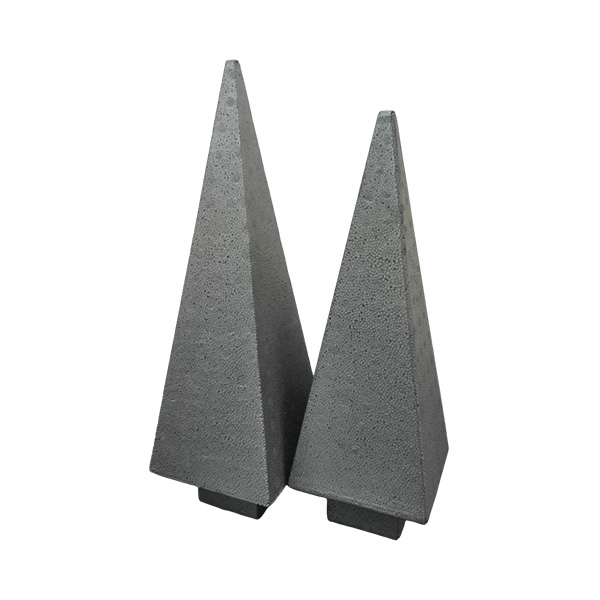

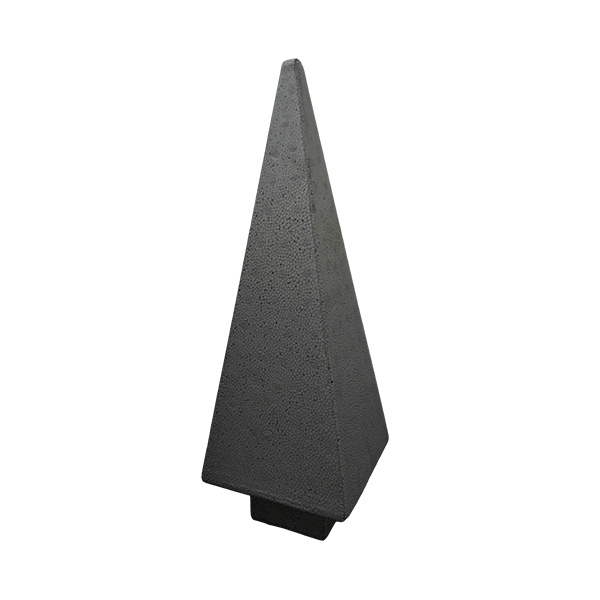

High Performance Pyramidal Hybrid Absorber – Expanded Polypropylene (EPP)
● Closed-cell polypropylene material without leakage of carbon particles
● Fire retardancy conforms to NRL8093 Test 1, 2 and 3/ UL 94HF-1/ DIN 4102-1 B2
● Easy installation method and easy replacement for damaged tapers
● Resistant to humidity and stable performance
● Environmentally friendly and compliant with REACH and RoHS
● Clean room environments certified by ISO 14644-1 class 5
● Lightweight product
● Working condition:
Working temperature: -50℃~120℃
Frequency range: 9KHz-110GHz
Power handling: 1200W/m²
Parameter Specification
| Model number | Size (mm) | Weight (kg) | Number of cones | Shape |
| EMC300S | 600 600 300 | 2 | 36 | wedge |
| EMC450S | 600 600 450 | 1.6 | 4-piece combination | wedge |
| EMC450SF | 600 600 450 | 4 | 9 | Crew cut |
| EMC500S | 600 600 500 | 3 | 16 | wedge |
| EMC700S | 600 600 700 | 5 | 9 | wedge |
| EMC900S | 600 600 900 | 2.2 | 4-piece combination | wedge |
| EMC1300S | 600 600 1300 | 3.5 | 4-piece combination | wedge |
