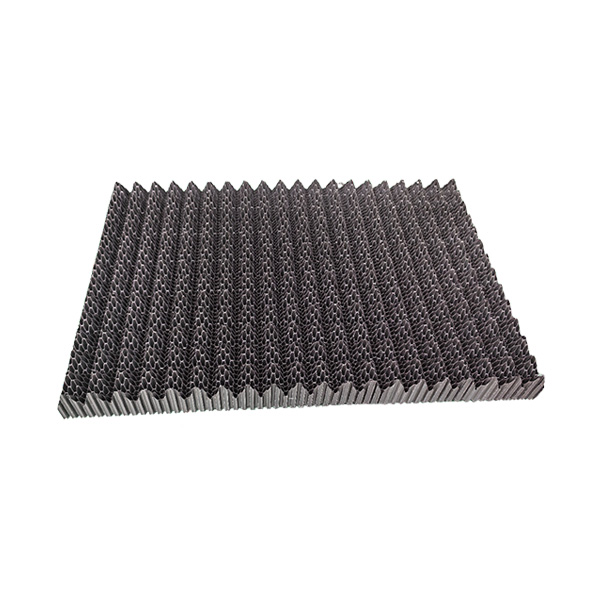

High Performance Pyramidal Hybrid Absorber-Expanded Polystyrene Absorber(EPS)1
● Excellent power handling capability under continuous wave exposure
● Fire retardancy conforms to NRL8093 Test 1, 2 and 3/ UL 94HF-1/ DIN 4102-1 B2
● Easy installation method
● Resistant to humidity and stable performance
● Environmentally friendly and compliant with REACH and RoHS
● Clean room environments certified by ISO 14644-1 class 5
● Lightweight product
● Working condition:
Working temperature: -50℃~200℃
Frequency range: 30MHz-40GHz
Power handling: Up to 12KW/m²
Parameter Specification
| Model number | 200MHz | 0.5GHz | 1GHz | 3GHz | 6GHz | 8GHz | 18GHz | 40GHz |
| OTA60P | / | / | / | -4dB | -8dB | -14dB | -16dB | -10dB |
| OTA75P | / | -5dB | -8dB | -12dB | -22dB | -35dB | -30dB | -30dB |
| OTA100P | / | -10dB | -18dB | -24dB | -35dB | -35dB | -30dR | -30dB |
| OTA200P | -12dB | -20dB | -13dB | -14dB | -18dB | -29dB | -38dB | |
| OTA300P | / | -20dB | -30dB | -45dB | -45dB | -45dB | -45dB | -45dB |
| OTA500P | / | -35dB | -38dB | -49dB | -55dB | -50dB | -50dB | -50dB |
| OTA700P | / | -35dB | -40dB | -50dB | -55dB | -50dB | -50dB | -50dB |
| OTA300S | / | -20dB | -30dB | -45dB | -45dB | -45dB | -45dB | -45dB |
| OTA500S | / | -30dB | -35dB | -49dB | -55dB | -50dB | -50dB | -50dB |
| OTA700S | / | -35dB | -40dB | -50dB | -55dB | -50dB | -50dB | -50dB |
| OTA1000S | -24dB | -48dB | -50dB | -55dB | -55dR | -55dB | -55dB | -55dB |
| OTA1200S | -30dB | -50dB | -53dB | -55dB | -55dB | -55dB | -55dB | -55dB |
| OTA1800S | -40dB | -50dB | -50dB | -55dB | -55dB | -55dB | -55dB | -55dB |
| OTA50FW | ||||||||
| OTA200FW | / | / | -15dB | -20dB | -30dB | -30dB | -30dB | -45dB |
